KESKITASON MESTARITEOS

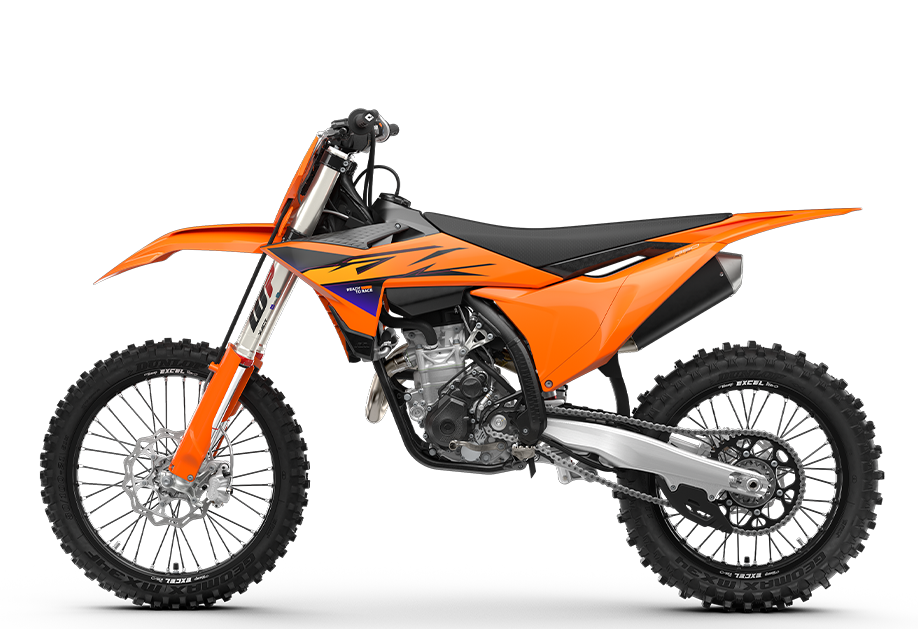

Yli vuosikymmenen kilpa- ja voittokokemuksen ansiosta KTM 350 SX-F on jo kauan sitten luopunut aliarvostetun haastajan maineesta ja todistanut olevansa arvokas kilpailija. Se tarjoaa käytettävää tehoa koko kierrosalueella, vakaan suorituskyvyn nopeudessa ja aitoa mestaruustason suorituskykyä. KTM 350 SX-F on jälleen READY TO RACE.

Engine

Design: 1-cylinder, 4-stroke engine
Displacement: 349.7 cm³
Transmission: 5-speed
Fuel-mixture generation: Keihin EFI, throttle body 44 mm
EMS: Keihin EMS
Clutch primary drive teeth: 72
Primary drive: 24:72
Clutch: Wet multi-disc DS clutch, Brembo hydraulics
Engine cylinder: Single cylinder
Engine stroke: 4-Stroke

Chassis

Frame design: Central double-cradle-type 25CrMo4 steel
Front brake: Disc brake
Rear brake: Disc brake
Rear subframe design: Aluminum-reinforced polyamide
Chain: 520, Non-sealed

Suspension

Front suspension: WP XACT-USD (AER), Ø 48 mm
Rear suspension: WP XACT Monoshock with linkage
Suspension travel (front): 310 mm
Suspension travel (rear): 300 mm
Front suspension adjustment: Compression (high and low speed), rebound
Rear suspension setting: Compression and rebound adjustable

Dimensions

Seat height: 958 mm
Ground clearance: 343 mm
Tank capacity (approx.): 7.2 l
Weight (without fuel): 102.4 kg
