AVAA UUSIA REITTEJÄ

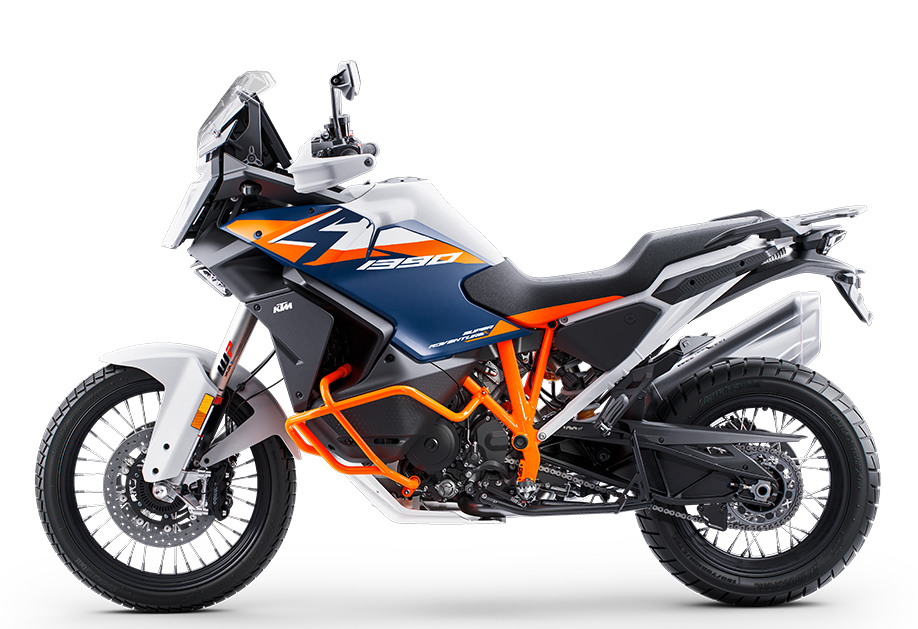

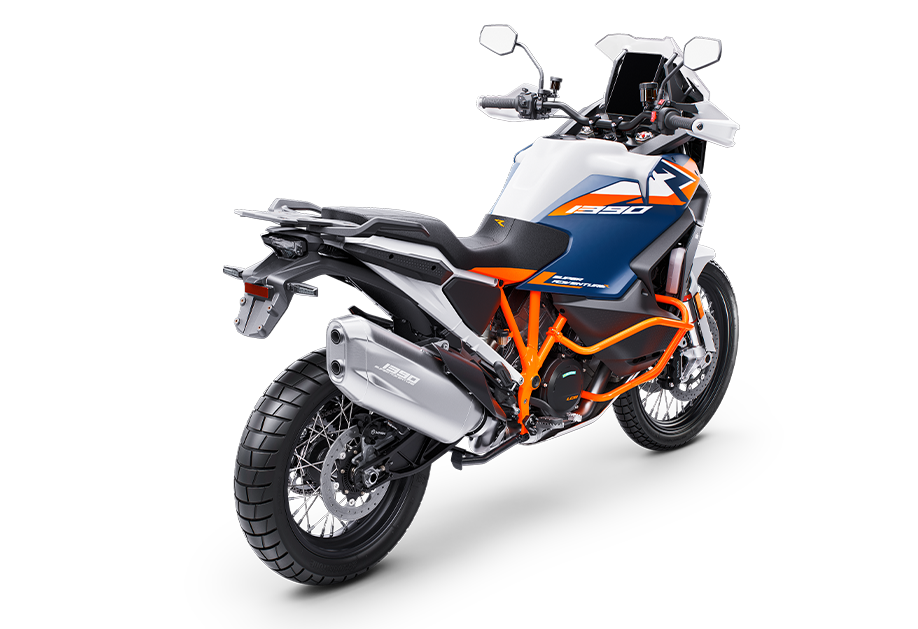

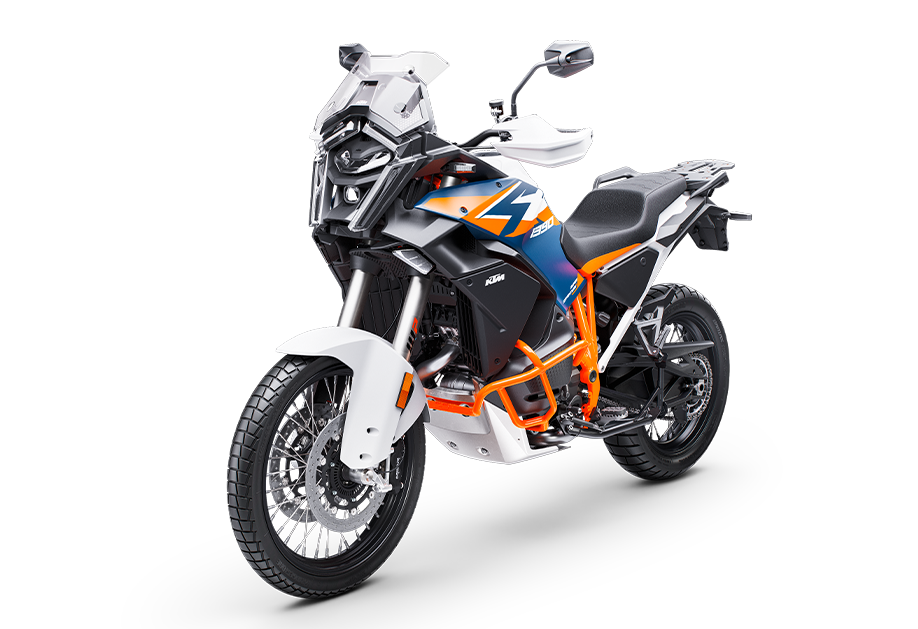

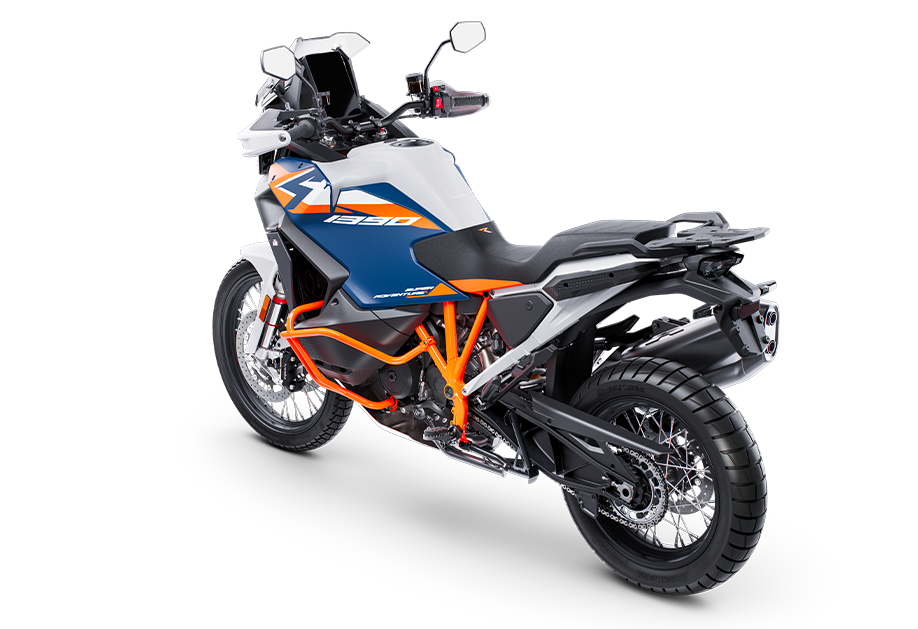

Avaa karttasovellus, etsi mahdollisimman syrjäinen paikka ja paina navigoi. KTM 1390 SUPER ADVENTURE R on suunniteltu ylittämään villeimmät ja vaativimmat maastot ylivoimaisella suorituskyvyllä ja luokkansa parhaalla kyvykkyydellä. Se ei ainoastaan jatka kovatasoisten edeltäjiensä perintöä, vaan KTM 1390 SUPER ADVENTURE R -nimi pysyy edelleen äärimmäisenä READY TO RACE -henkisenä V2-moottorisena matkaseikkailupyöränä, joka on koskaan valmistettu.

Engine

Design: 2-cylinder, 4-stroke, V 75°
Displacement: 1350 cm³
Power: 173 PS
Torque: 145 Nm
Transmission: 6-speed
CO2 emissions: 139.5 g/km
Cooling: Liquid cooled with water/oil heat exchanger
Engine cylinder: Twin cylinder
EMS: Keihin EMS with RBW, twin ignition
Engine oil: Motorex, SAE 10W-50
Engine stroke: 4-Stroke
Silencer material: Stainless steel
Silencer type: Silencer

Chassis

Frame design: Chromium-Molybdenum-Steel trellis frame, powder coated
Steering head angle: 64.7 °
Rear subframe design: Aluminium, powder-coated
Trail: 112 mm
Wheelbase: 1577 mm
Chain: 525 X-Ring

Brakes

Front brake: 2 x Brembo 4-piston, radially mounted caliper, brake disc Ø 320 mm
Rear brake: Brembo 2-piston, fixed caliper, brake disc Ø 267 mm
Front brake disc diameter: 320 mm
Rear brake disc diameter: 267 mm

Suspension

Front suspension: WP XPLOR-USD, Ø 48 mm
Rear suspension: WP XPLOR shock absorber with PDS
Suspension travel (front): 240 mm
Suspension travel (rear): 240 mm
Front suspension adjustment: Compression, rebound and preload adjustment
Rear suspension setting: Compression (high and low speed), rebound and preload adjustment

Dimensions

Seat height: 880 mm
Wheelbase tolerance: 15 mm
Wheelbase: 1577 ± 15 mm
Tank capacity (approx.): 23 l
Ground clearance: 242 mm
Weight (without fuel): 231 kg
Weight fully fueled: 248 kg

Wheels

Front wheel diameter: 21 "
Rear wheel diameter: 18 "
Front wheel width: 2.5 "
Rear wheel width: 4.25 "
Wheels: 2.5 x 21"; 4.25 x 18"
Wheel type: Spoked wheels with aluminium rims
