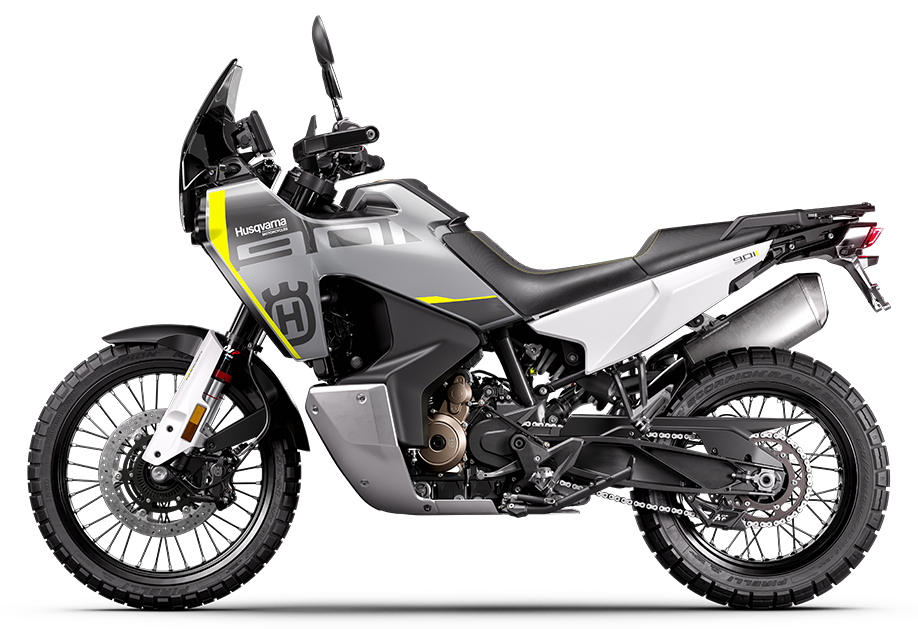

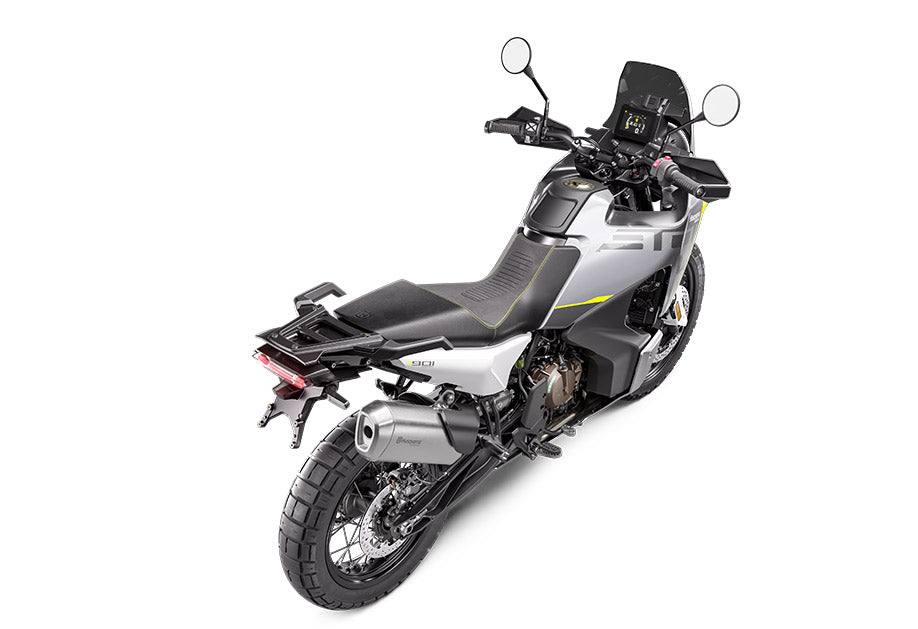

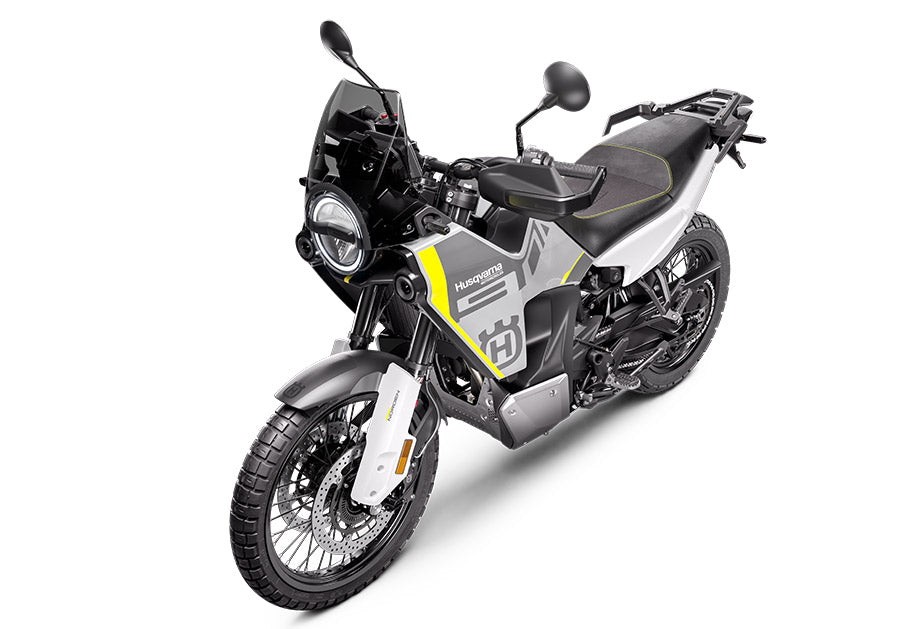

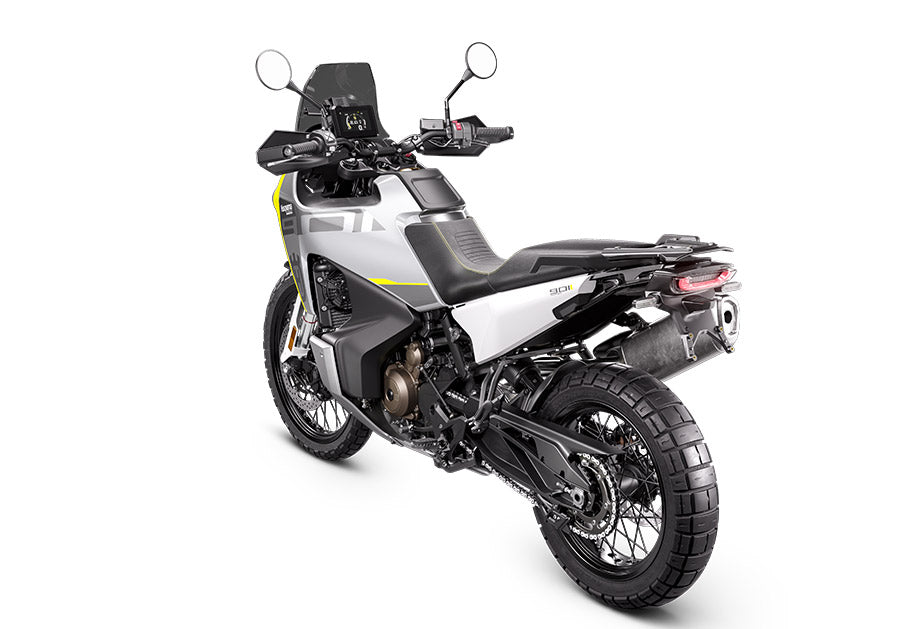

2026 Husqvarna Norden 901

Engine

Primary drive: 39:75
Torque: 100 Nm
Transmission: 6-speed
Battery capacity: 10 Ah
Cooling: Liquid cooled with water/oil heat exchanger
Secondary gear ratio: 16:45
Power in KW: 77 kW
Starter: Electric starter
Stroke: 68.8 mm
Bore: 90.7 mm
Clutch: Cable operated PASC slipper clutch
CO2 emissions: 103 g/km
Compression ratio: 13.5
Displacement: 889 cm³
EMS: Bosch EMS with RBW
Design: 2-cylinder, 4-stroke, parallel twin
Fuel consumption: 4.5 l/100 km
Fuel-mixture generation: DKK Dellorto (Throttle body 46mm)
Lubrication: Forced oil lubrication with 2 oil pumps

Chassis

Weight (without fuel): 204 kg
Tank capacity (approx.): 19 l
Wheelbase: 1.513 mm
ABS: Bosch 9MB Two Channel ABS (disengageable)
Front brake disc diameter: 320 mm
Rear brake disc diameter: 260 mm
Front brake: 2 x 4-piston caliper, radially mounted, brake disc
Rear brake: 2 piston floating caliper, brake disc
Chain: 520 X-Ring
Frame design: Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Front suspension: WP APEX 43
Ground clearance: 252 mm
Handlebar: Aluminium, tapered Ø 28/22 mm
Rear suspension: WP APEX - Monoshock
Seat height: 859/879 mm
Silencer: Stainless steel primary and aluminium secondary silencer
Steering head angle: 64.2 °
Rear subframe design: Chromium-Molybdenum-Steel trellis, powder coated
Suspension travel (front): 220 mm
Suspension travel (rear): 215 mm
Wheels: 2.50 x 21"; 4.50 x 18"
Wheels: Spoked wheels with aluminium tubeless rims
Wheelbase: 1.513 ± 15 mm
